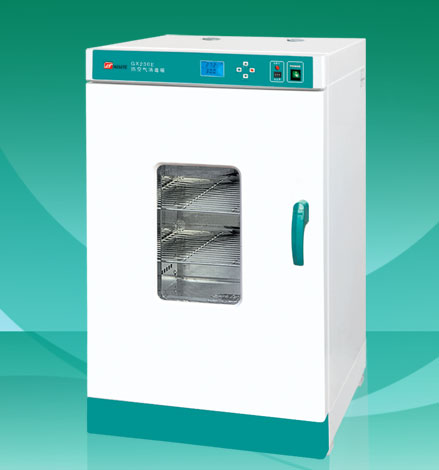

WPL ELECTRO-THERMAL CONSTANT-TEMPERATURE INCUBATOR SERIES |
|
Product name锛WPL ELECTRO-THERMAL CONSTANT-TEMPERATURE INCUBATOR SERIES |
Item锛 |
Details锛 |
USES锛
This equipment applies to industrial enterprises, food processing, agriculture, biochemistry, biology, and medicine industry for bacterium and microorganism culturing experiment etc.
MAIN TECHNICAL PARAMETERS锛
1. Natural convection heating circulation and gentle breeze circulation ensure temperature evenness.
2. Stainless steel inner container; foursquare semicircle transition; flexible positioning and removable shelf for convenient cleaning.
3. Large liquid crystal screen, multiple groups of data to be displayed at a time; function of timing and over-temperature protection.
4. Independent temperature safety device, which auto breaks off when over temperature limit to ensure experiment run safely.
5. Heat imsulation well Door with wide hollow tempered glass observation window, adjustable air-tight buckle lock and silicon rubber seal.
Optional accessories:
a. Desk printer: RMB1150;
b. Optional long-distance control system: RMB 800.
c. Multi-staged temperature controller: RMB 800 (domestic), RMB3000 (import);
d.RS485 interface for software connection.
MAIN TECHNICAL PARAMETERS锛
Model |
voltage锛圴锛 |
Temperature
variation锛堚剝锛
|
Tem.resolution/
fluctuation锛堚剝锛
|
Tem.
uniformity锛堚剝锛
|
Ambient Tem
锛堚剝锛
|
Consumed
power锛圵锛
|
WPL-30BE |
220V/50HZ
|
RT+5-80鈩 |
0.1/±0.2鈩 |
±0.5鈩 |
5-40鈩 |
150W |
WPL-45BE |
250W |
WPL-65BE |
500W |
WPL-125BE |
600W |
WPL-230BE |
700W |
Model |
Interior
dimensions
W×D×H(mm) |
Exterior
dimensions
W×D×H(mm) |
Packaging
dimensions
W×D×H(mm) |
Load per rack |
Timing range |
Gross/net weight(kg) |
WPL-30BE |
310×310×310 |
460×510×695 |
550×570×765 |
5/kg 2 forstand-ardconfiguration |
1-9999min |
33/37 |
WPL-45BE |
350×350×350 |
500×550×735 |
620×585×800 |
37/43 |
WPL-65BE |
400×360×450
|
550×550×840 |
640×640×905 |
44/49 |
WPL-125BE |
500×450×550 |
636×680×915 |
730×720×1000 |
60/66 |
WPL-230BE |
600×500×750 |
730×670×1220 |
900×800×1350 |
94/120 |
|
|
