DRYING OVEN/INCUBATOR |
|

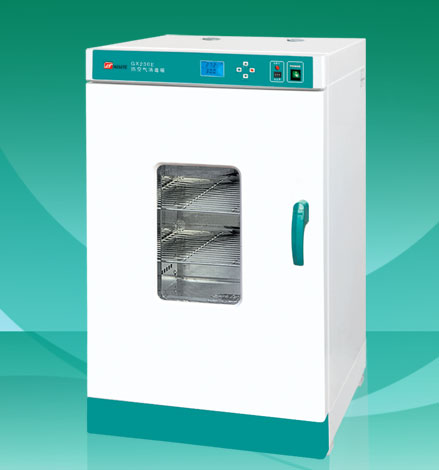

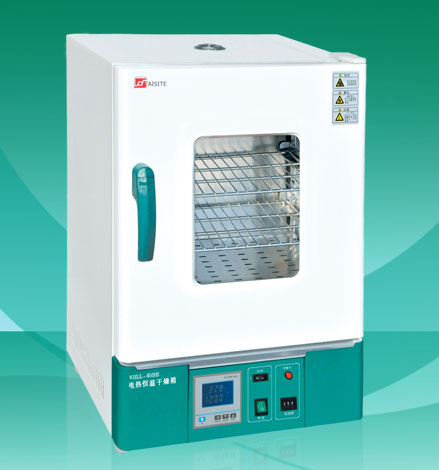

Product name锛DRYING OVEN/INCUBATOR |
Item锛 |
Details锛 |
USES锛
This new designed drying oven/incubator is used by industries, scientific research institutions and medicine units for drying, baking, or bacterium and microbe cultivating.
CHARACTERISTICS锛
1. Stainless steel inner chamber; foursquare semicircle transition; flexible positioning and removable shelf,airduct lateral plate and bottom heater covering are easy assembly and disassembly for convenient cleaning.
2. Micro-computer high-brightness digital or liquid crystal temperature controller, which has functions of timing and over-temperature protection.
3. Adjustable fan speed; set blowing rate as needs to meet the multiple requirements of experiment.
4. Independent temperature safety device; auto alarm and heating suspend when main controller fails to work, which provide double protection to ensure experiment run safely and no accident would happen.
5. Door with wide double-glass observation window, adjustable air-tight buckle lock and silicon rubber seal which efficiently prevent heat loss.
Optional accessories:
a. Desk printer: RMB1150;
b. Liquid crystal screen temperature controller: Optional long-distance control system: RMB 800.
MAIN TECHNICAL PARAMETERS锛
Model |
voltage
锛圴锛 |
Tem.variation
锛堚剝锛 |
Tem.
fluctuation
锛堚剝锛 |
Tem.dist-
inguish-
ability锛堚剝锛 |
Ambient tem.
锛堚剝锛 |
Drying power
锛圵锛 |
Working
power
锛圵锛 |
GP-30B
GP-30BE |
220V/50HZ |
A锛欰s incubator
RT+5-80鈩
B锛欰s drying oven
80-250鈩
|
A锛±0.5鈩
B锛±1鈩 |
0.1鈩 |
5-35鈩 |
800 |
300 |
GP-45B
GP-45BE |
1200 |
300 |
GP-65B
GP-65BE |
1600 |
400 |
GP-125B
GP-125BE |
2300 |
600 |
GP-230B
GP-230BE |
3000 |
700 |
Model |
Interior dimensions
W×D×H(mm) |
Exterior dimensions
W×D×H(mm) |
Packaging dimensions
W×D×H(mm) |
Load per rack |
Gross/net weight(kg) |
GP-30B
GP-30BE |
310×310×310 |
460×510×695 |
550×570×765 |
15/kg 2 for standard configuration |
33/37 |
GP-45B
GP-45BE |
350×350×350 |
500×550×735 |
620×585×800 |
37/43 |
GP-65B
GP-65BE |
400×360×450
|
550×550×840 |
640×640×905 |
44/49 |
GP-125B
GP-125BE |
500×450×550 |
636×680×915 |
730×720×1000 |
60/69 |
GP-230B
GP-230BE |
600×500×750 |
730×670×1220 |
900×800×1350 |
94/120 |
|
|
