USES锛

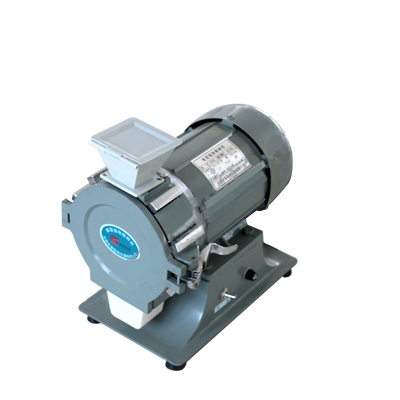

It is the special instrument for soil analytical study. It is used for all kinds of soil crushing.
CHARACTERISTICS锛

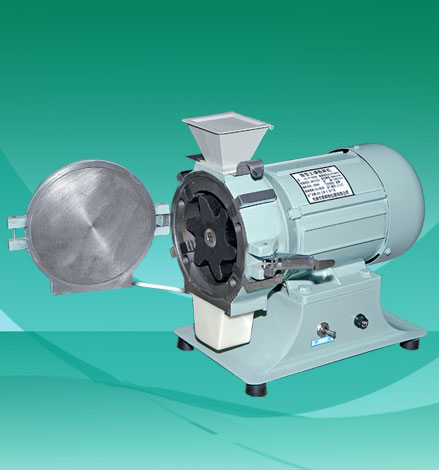

1. Rotary disintegrator, which works by the action of rotary rotor and cutter.
2. Featured by continuous working time, high efficiency and excellent crushing effect; blade space can be adjusted according to soil fineness.
MAIN TECHNICAL PARAMETERS锛
| Model |
Voltage
(V)
|
Motor power
(W)
|
Rational speed
(r/min)
|
Grinding result
(mesh)
|
Sieve diameter
(mm)
|
| FT102 |
220 |
250 |
1400 |
30锝200 |
0.5/1/1.5 |
| Model |
Working time
|
Exterior dimensions
W×D×H |
dimension
(mm)
|
Weight
(kg)
|
Gross weight
(kg) |
| FT102 |
continuous |
300×185×290 |
350×240×285 |
15±0.5 |
16.5 |
