USES锛

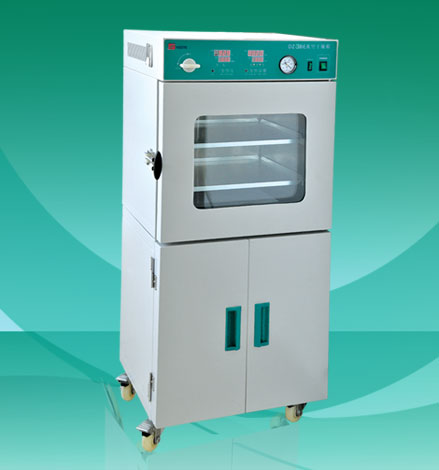

This product is designed for drying and heating powder articles, as well as disinfecting and sterilizing of glass containers. It is widely used in the field of medicine, food, light industry, chemistry, agriculture, environmental protection and experiment etc.
CHARACTERISTICS锛
1. Integrated design of vacuum oven, pump and other relative device, which is easy to operate and stable in performance.
2. Auto-pumping can be achieved by setting vacuum degree as needs; multiple sections of program can be preset to ensure repeated or multistep pumping. With experiment goes on, the vacuum degree decreases, and then the controller would restart the pump according to showed error to ensure stable and accurate vacuum degree.
3. Manual and electric double air eliminator, which enable easy operation of air bleeding; manual air-bleed is used on the occasion of power failure.
4. Pump line with air filter inside to ensure long service life of vacuum pump.
5. Vacuum degree is shown by digital meter and pointer meter.
MAIN TECHNICAL PARAMETERS锛
Model |
voltage
锛圴锛 |
Consumed power
锛圵锛
|
Tem.variation
锛堚剝锛
|
Tem. disting-
uishability锛堚剝锛 |
Tem.
fluctuation(%) |
Vacuum degree(pa) |
DZ-2BE |
220V/50HZ |
1400W |
RT+10-250鈩 |
0.1鈩 |
±1% |
锛133pa |
DZ-3BE |
2000W |
|
|
Model |
Interior dimensions
W×D×H(mm) |
Exterior dimensions
W×D×H(mm) |
Packaging dimensions
W×D×H(mm) |
Gross/net
weight(kg) |
DZ-2BE |
415×370×340 |
560×540×1330 |
735×630×1470 |
85/115 |
DZ-3BE |
450×450×450 |
610×620×1350 |
785×710×1490 |
86/117 |
|
|
|
|
|
