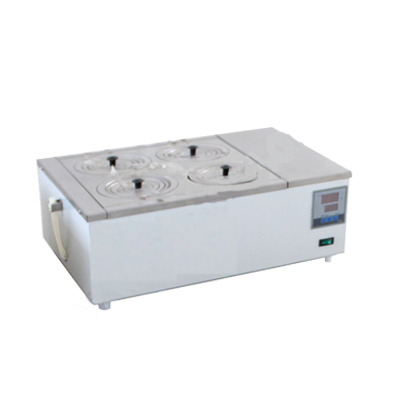

USES锛
This equipment applies to medical unit, college, scientific research institution and the department of chemical printing, dyeing, pharmacy锛宲etroleum and electronic component production for the use ofevaporation锛宎refaction锛宑oncentration and constant temperature heating.
CHARACTERISTICS锛
1. Novel structure effectively prevents vapor leakage.
2. Stainless steel inner chamber and roof cover.
3.Temperature tontrouer systerm cam choose.
MAIN TECHNICAL PARAMETERS锛
| Model |
DK-98-鈪
(Single hole) |
DK-98-鈪
Single row 2-hole |
DK-98-鈪
Single row 4-hole |
DK-98-鈪
Single row 6-hole |
| Voltage (v) |
220V50Hz |
| Consuming power (W) |
400 |
500 |
1000 |
1500 |
| Temperature Volatility(鈩冿級 |
±0.5 |
| Temperature variation(鈩) |
37锝100鈩 |
| Tem. Sensitivity (鈩) |
≤±1 |
| Indication error (鈩) |
≤±2.5 |
| Interior dimensions (L×W×H) mm |
168×168×120 |
325×168×120 |
653×168×120 |
945×168×120 |
| Exterior dimensions (L×W×H) mm |
355×240×190 |
510×240×190 |
830×240×190 |
1130×240×215 |
| Packaging dimensions (mm) |
405×320×235 |
555×320×235 |
870×320×235 |
1170×320×235 |
| Net weight (kg) |
3.5 |
4.5 |
7 |
9 |
| Gross weight (kg) |
4 |
5 |
8 |
10 |
| Model |
DK-98-鈪
Double rows 4-hole
|
DK-98-鈪
Double rows6-hole |
DK-98-鈪
Double rows 8-hole |
| Voltage (v) |
220V50Hz |
| Consuming power (W) |
1000 |
1500 |
2000 |
| Temperature Volatility(鈩冿級 |
±0.5 |
| Temperature variation(鈩) |
37锝100鈩 |
| Tem. Sensitivity (鈩) |
≤±1 |
| Indication error (鈩) |
≤±2.5 |
| Interior dimensions (L×W×H) mm |
325×325×120 |
480×325×120 |
635×325×120 |
| Exterior dimensions (L×W×H) mm |
515×380×190 |
670×380×190 |
830×380×190 |
| Packaging dimensions (mm) |
550×480×235 |
720×480×235 |
870×480×235 |
| Net weight (kg) |
7 |
8 |
9.5 |
| Gross weight (kg) |
8 |
9.5 |
11 |
