Products

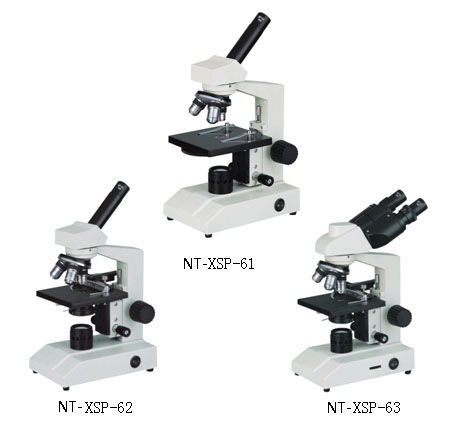

NT-XSP-61 |
|
| Product name：NT-XSP-61 |
| Item： |
| Details： |
| Specifications |
Items |
| NT-XSP-61 |
NT-XSP-62 |
NT-XSP-63 |
| Vision Head |
Monocular45º Tube 360ºInclined |
√ |
√ |
|
| Binocular45º Tube 360ºInclined |
|
|
√ |
| Eyepiece |
WF10X |
√ |
√ |
√ |
| Objective |
Achromatic 4X 10X 40Xs |
√ |
|
√ |
| Achromatic 10X 40Xs 100Xs(oil) |
|
√ |
√ |
| Focusing |
Separate Coarse&Fine Adjustment |
√ |
√ |
√ |
| Fine Adjust：1.3mm |
√ |
√ |
√ |
| Stage |
Stage with Two Clips |
√ |
|
|
| Stage with Moving Scale |
|
√ |
√ |
| Size 120mmx120mm |
√ |
√ |
√ |
| Condenser |
N.A.0.65 with Disc Diaphragm |
√ |
|
|
| N.A.1.25Abbe with Iris Diaphragm |
|
√ |
√ |
| Light Source |
110V/20W,220V/20W Halogen Lamp |
√ |
√ |
√ |
| Optional Parts |
Eyepiece：WF16X |
| Objective：60Xs; 195 Series |
| LED Light Source：110V/20W,220V/20W |
|
 |
